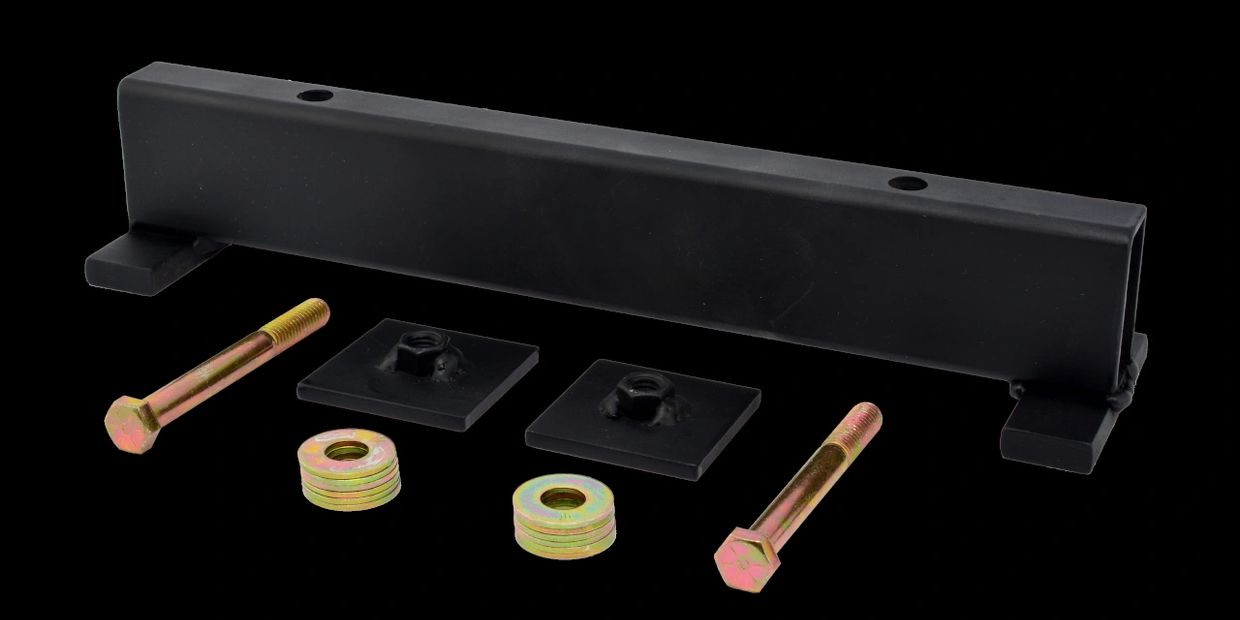

FS-1 | DOGBONE FRAME STRAIGHTENER 1993-2008 TOURING MODELS

---

SPECIFICATIONS

• Grade 8 Hardware
• High Quality Steel
• Flat Black Paint Finish
• Manufactured in the USA

SIMPLE DOGBONE REPAIR

• Place plate with weld nuts on top of dogbone.
• Place a couple of washers on each bolt.
  • Number of washers will depend on how bent dogbone is.
• Place the 1" x 3" flat bars of the welded assembly against frame tubes on the motorcycle.
• Push each bolt with washers through tube holes and hand tighten into weld nuts.
• Alternate tightening one side then the other.
  • Be careful not to run bolt into oil pan.
  • Add more washers as necessary.
  • Repeat until dogbone is straight.

MADE IN THE USA

Scorpion Motorcycle Components, Inc. ensures that all parts and materials were manufactured in the USA. The manufacturing and assembly of the Smooth Rider is exclusively performed in South Dakota.
